Analytics

CVAT provides analytics data for projects, tasks, and jobs to help you to track annotation progress and performance metrics at every level. Analytics support a wide range of use cases, including:

• Defining the working time a user spent on a job during a specific period.
• Tracking time spent in each job stage.
• Calculating the total number of ground truth objects in a project.
• Determining the number of ground truth images in a project.
• Checking interpolation rates to assess annotator efficiency.
• Identifying how many objects of a specific label were annotated in a resource.
• Calculating the average annotation speed of a user in a project or task.
• Analyzing how many objects or images were present in removed resources.

Analytics is a paid feature available in CVAT Online (paid tiers) and CVAT Enterprise.

In personal workspaces, analytics are available only to the workspace owner. In organizations, access depends on the user’s organizational role:

• Owners and Maintainers: Full access to all analytics.
• Supervisors: Access only to analytics for visible projects, tasks, and jobs.
• Workers: Access only to analytics for tasks and jobs assigned to them. Workers cannot update the analytics data.

Access

To open analytics:

• For a project
• For a task
• For a job

Analytics page

The Analytics page displays the data relevant to the specific resource (project, task, or job). Use the link in the page title to return to the corresponding project, task, or job.

Analytics data is not fetched automatically. When you first open the Analytics page, it will be empty. To fetch and display the analytical data, select the Request button.

Note: The analytical data is fetched for all resource children. So, when you request data for a task, the data for all task jobs is also fetched.

Once the data is fetched and displayed on the page, you can check its relevance under the page title.

To update the data, select button.

The Analytics page includes:

• Summary tab.
• Annotations tab.
• Events tab.
• Date filter.
• Export events button.

Note: The date filter is applied to the Summary and Events tabs.

The Summary tab provides a statistics overview, while the Annotations and Events tabs contain the detailed data in table form.

To download a CSV file with all event data, select the Export events button.

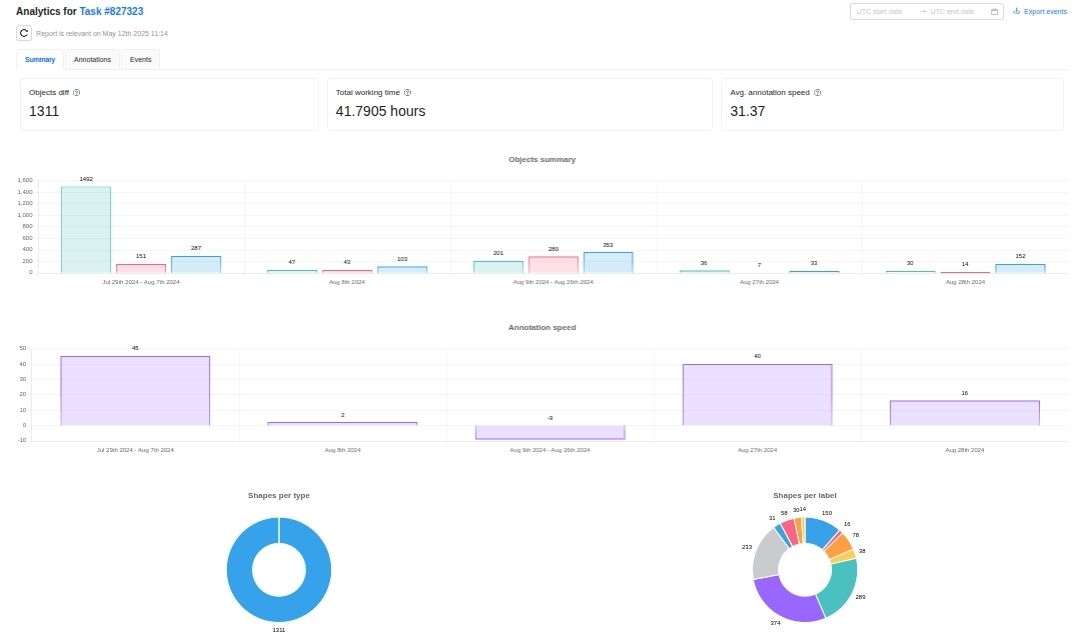

Summary tab

The Summary tab displays the quantitative metrics:

• Objects diff: Difference between created and deleted objects in the selected time period. The value may be negative, if the number of the deleted objects exceeds the number of the created objects during the selected time period.
• Total working time: Total hours spent across all users, based on annotation-related events.
• Avg. annotation speed: Average number of objects annotated per hour. The value may be negative, if the number of the deleted objects exceeds the number of the created objects during the selected time period.

The Summary tab includes charts for object statistics, annotation speed, and diagrams for annotation distribution by labels and types. Hover over a chart or diagram to display tooltips.

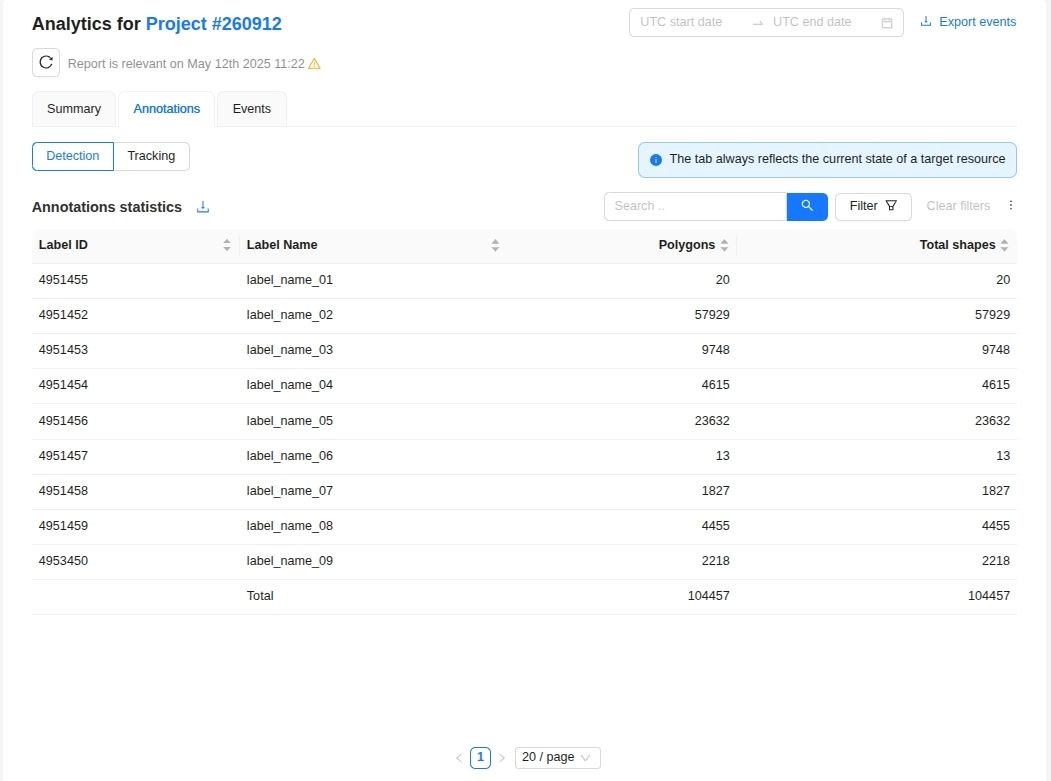

Annotations tab

The Annotations tab shows annotation statistics for:

• Shape mode (the Detections tab).
• Track mode (the Tracking tab).

Each tab includes a filterable, customizable table (learn how to work with tables).

You can search entries by the Label name column:

1. In the search box, enter the value or part of the value to find.
2. Select button or press Enter.

The Detection tab table contains the columns:

The Tracking tab table contains the columns:

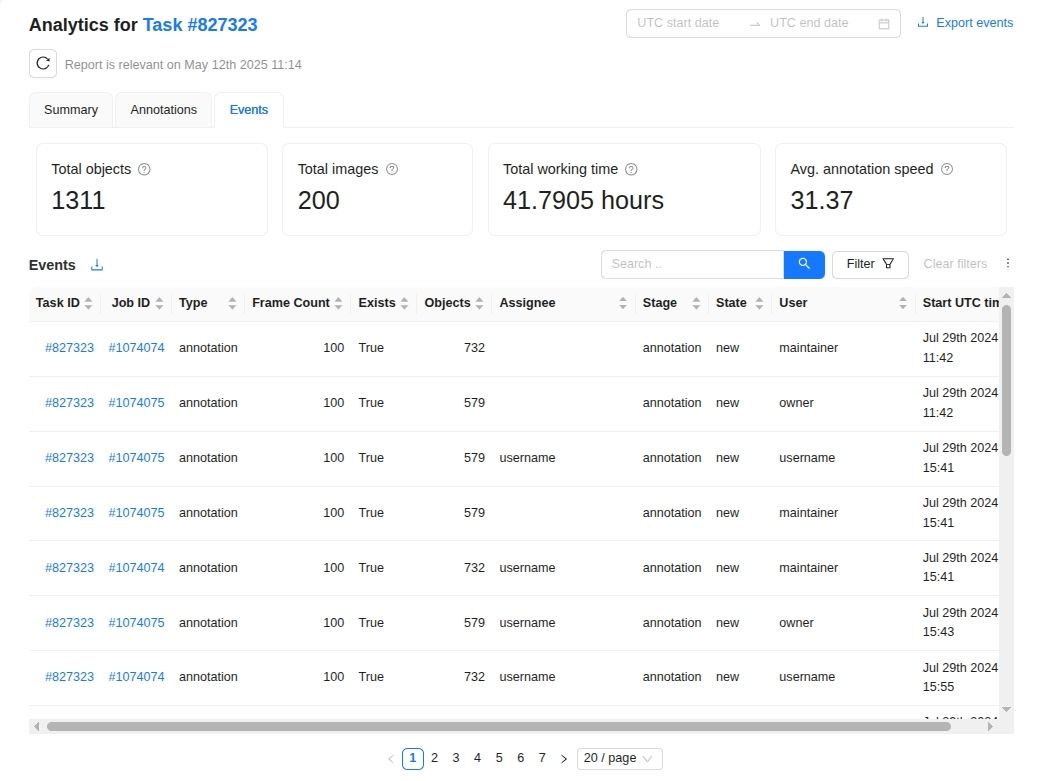

Events tab

The Events tab displays the following metrics:

• Total objects: Total number of objects in the filtered jobs.
• Total images: Total number of images in the filtered jobs.
• Total working time: Total user time spent.
• Avg. annotation speed: : Average number of objects annotated per hour.

Note: All metrics are recalculated when you apply the date or table filter.

The Events tab table contains the aggregated events for the selected resource. Each event is defined by a unique status signature, which is a combination of the job’s assignee, stage, state, and the user who performed the action. As long as this status signature stays the same, all events are combined into one row. For example, if the same user creates two objects in the same job, the Events table will display one event that includes both actions.

However, if the job’s status signature changes (for example, due to an action performed by a different user) the analytics register a new event. As a result, actions that might otherwise be aggregated are instead recorded as separate events in the table.

You can filter the events by date range:

1. Select the date filter near the page title.
2. Select the first and last dates or enter them in YYYY-MM-DD format.

If the date filter is empty, the Events tab shows the metrics and events for the lifetime of the project, task, or job.

To reset the date range, select button in the date filter.

You can search the table entries by values in Task name, Assignee, Stage, State, User columns:

1. In the search box, enter the value or part of the value to find.
2. Select button or press Enter.

Other common operations with tables are described in the Working with tables paragraph.

The events table columns:

Working with tables

The tables in the Annotations and Events tabs support:

1. Exporting the data: select button.

   Note: visible columns do not affect the file with exported data. It always contains the complete table with all columns and rows.

2. Filtering entries by a custom rule: select Filter, and set filtering criteria. To learn more about how to set a filter, refer to the Filter article.
3. Clearing filters: select Clear filters.
4. Customizing columns:
   1. Select above the right side of the table.
   2. Toggle the checkboxes for the columns to display or hide them in the table.
5. Sorting entries: select the column name to apply sorting. The arrows near the column name indicate the applied sorting order. The arrow up indicates ascending order, the arrow down indicates descending order. You can sort the entries by one column only.

Large tables are split into pages. You can find the pagination controls under the table. You can also change the number of entries per page.
